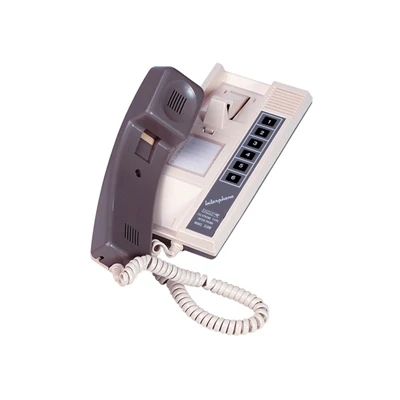

T16M 6 Station All Master Handset Intercom

This range has been discontinued the alternative is the 12 way version.

The P666 can start as a simple 2 station system and can be added to when necessary, up to a maximum of 6 stations. The product features any number of private conversations, conference facility by invitation, engaged tone, desktop or wall-mounting. Easy wiring into terminal box. Single 18v 1A power supply per system. The TI6M (P666) and TI12M (P666F) intercom is designed for when between 2 and 12 handsets are needed. The phones can be freestanding or wall mounted. Wiring is straightforward and only one power supply per system is required. In systems with more than 3 stations any number of conversations can take place simultaneously. A conference may be held between three or more stations by passing the call on but no station can interrupt a private discussion, an engaged tone will be heard. TI6M (P666) and TI12M (P666F) units are compatible with each other. In a system where some stations do not require a full 11 station calling capacity TI6M may be used in lieu of TI12M. (Other intercoms are NOT compatible)

• Depth (mm): 50
• Height (mm): 220
• Width (mm): 110
• Product Dimensions (mm): 220x110x50
• Net weight (kg): 0.53
• Adaptor: P007ME (not included)
• Cable Required: Number of stations plus two wires For Power (0.5 mm2)
• Colour: Ivory
• DC Input (V): 17 @1Amp
• Maximum run (m): 300
• Weight (kg): 0.53
