Klima Launch Controller Igniter Model Rocket Launcher

More power on tap with a dual battery configuration

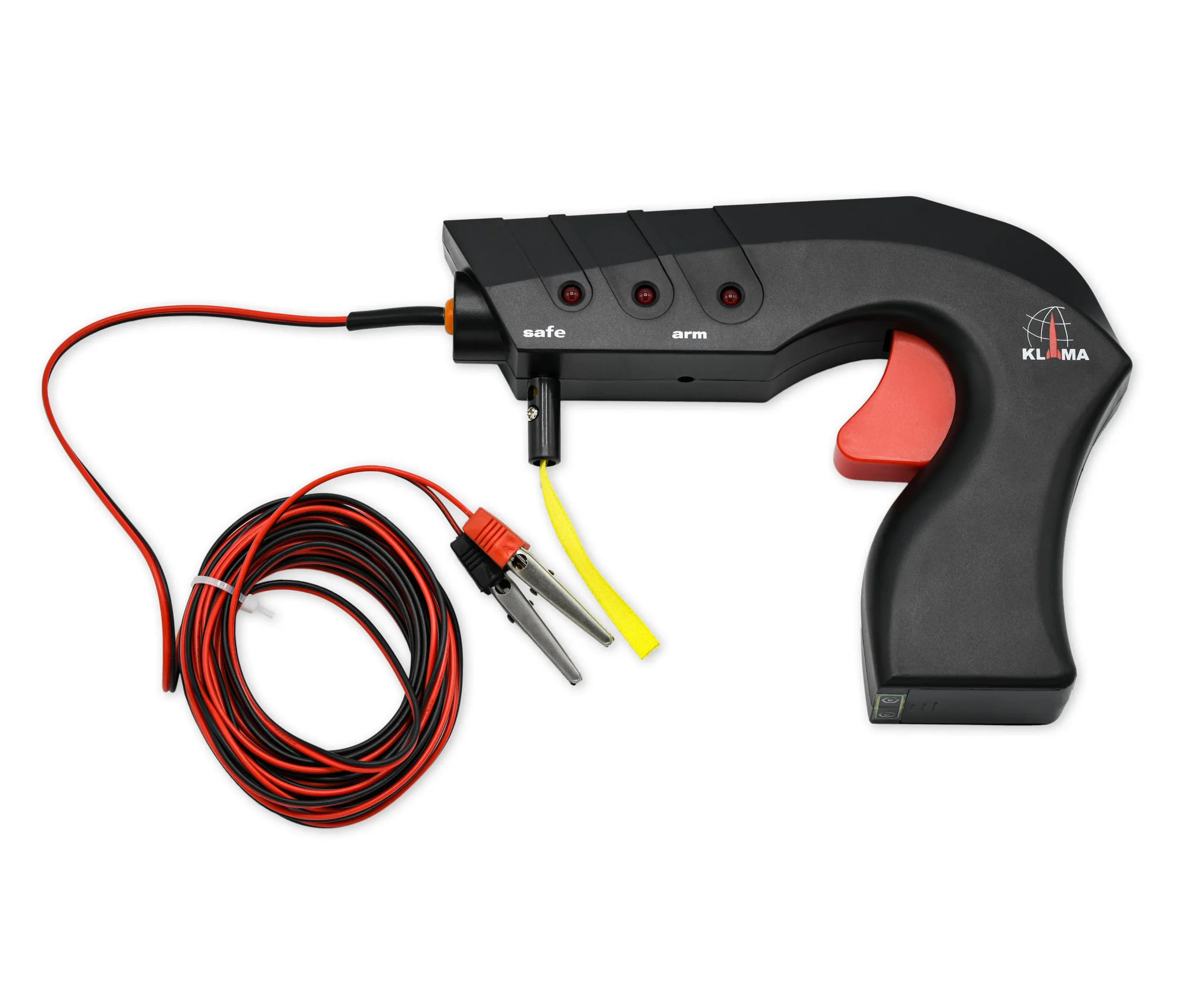

Our new igniter for pyrotechnic electric igniters is our own development and combines everything that is necessary for safe ignition. The pistol-shaped igniter can be triggered very easily with one finger. The safety plug is inserted into the “arm” position and the micro controller signals the closed ignition circuit via an LED running light and an additional acoustic signal. Depending on the use of different electric igniters, a 9-volt block can be used, or a second 9-volt block can be used to increase the power. The safety plug is in the “disarm” position for transport or storage. The five meter long cable, with crocodile clips made of stainless steel at the end, always ensures perfect function.

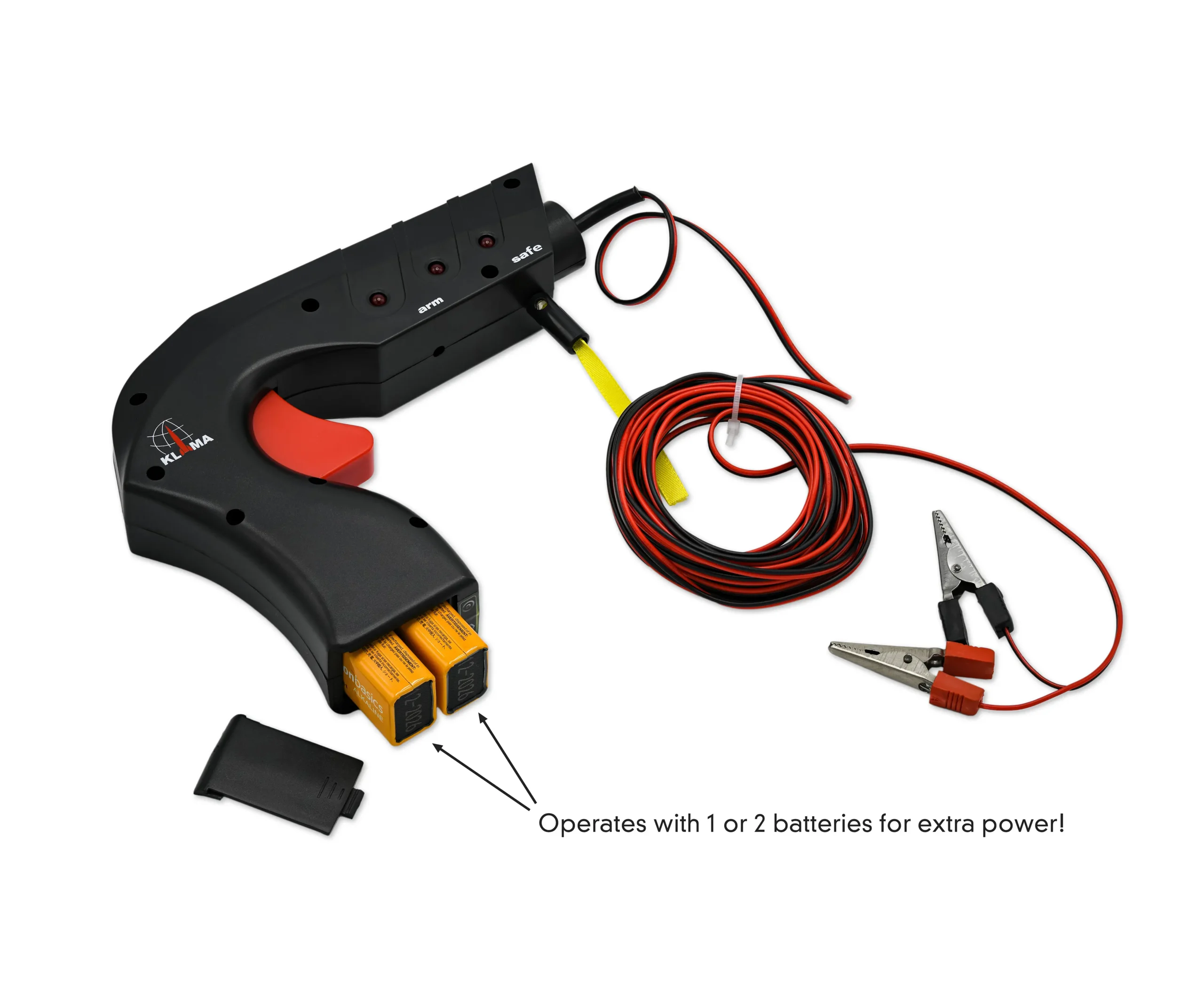

Stainless steel clips fight off motor exhaust crud. Keyed safety with light and buzzer alarm sequence gives plenty of warning when the controller is “hot”. But most valuable (if you are running longer wires to your overpowered cluster or mid-power/high power motors) is the option to slide a second 9V PP3 battery into the controller’s pistol grip.

The 5m cable is sufficient for A-D motors but if you are venturing upwards in the thrust department with a cluster or Cesaroni composite propellant motors E-H, then you need to add another 5m of cable for safety’s sake (and your insurance validity).

With a look and feel that would please Dirty Harry…Go ahead, punk, launch my day

Vital Statistics

Battery: one or two 9V PP3 batteries
Cable: 5 meters
