Biolite SolarHome 620 (Lighting System & Power Hub)

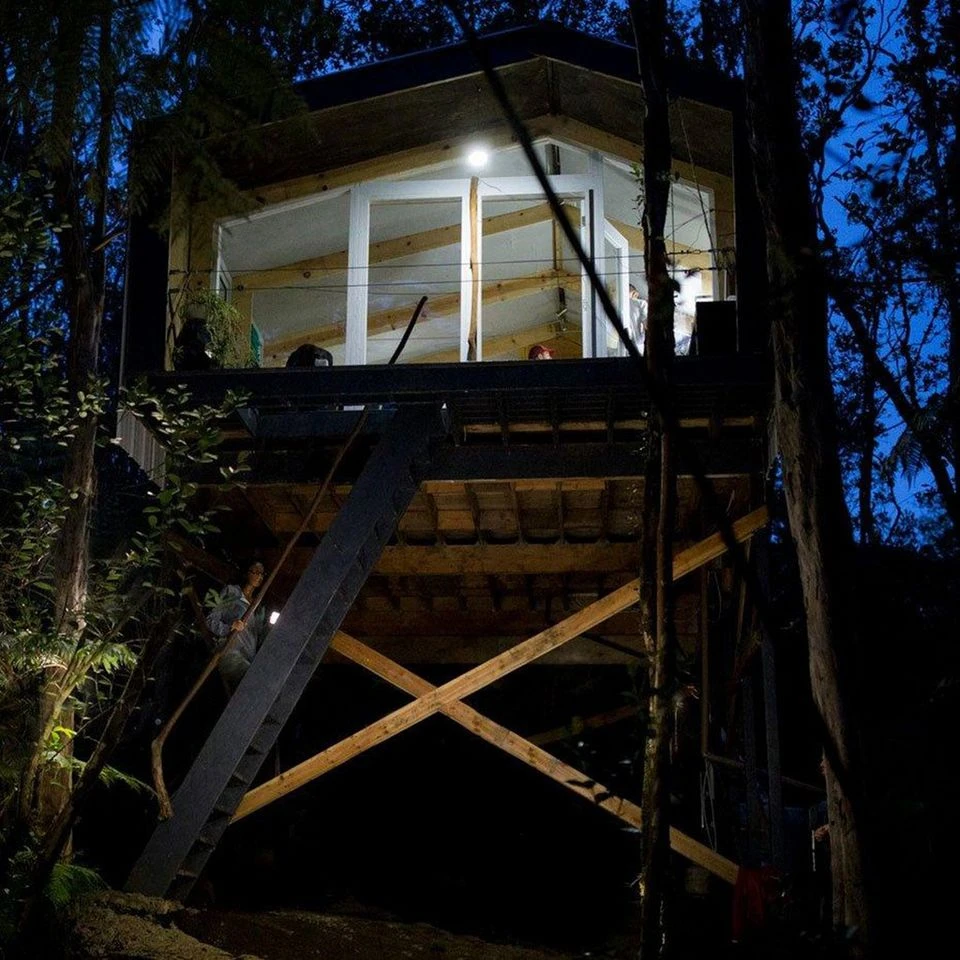

Create an off-grid lighting system, powered by the sun, and turn any structure into a real home away from home.

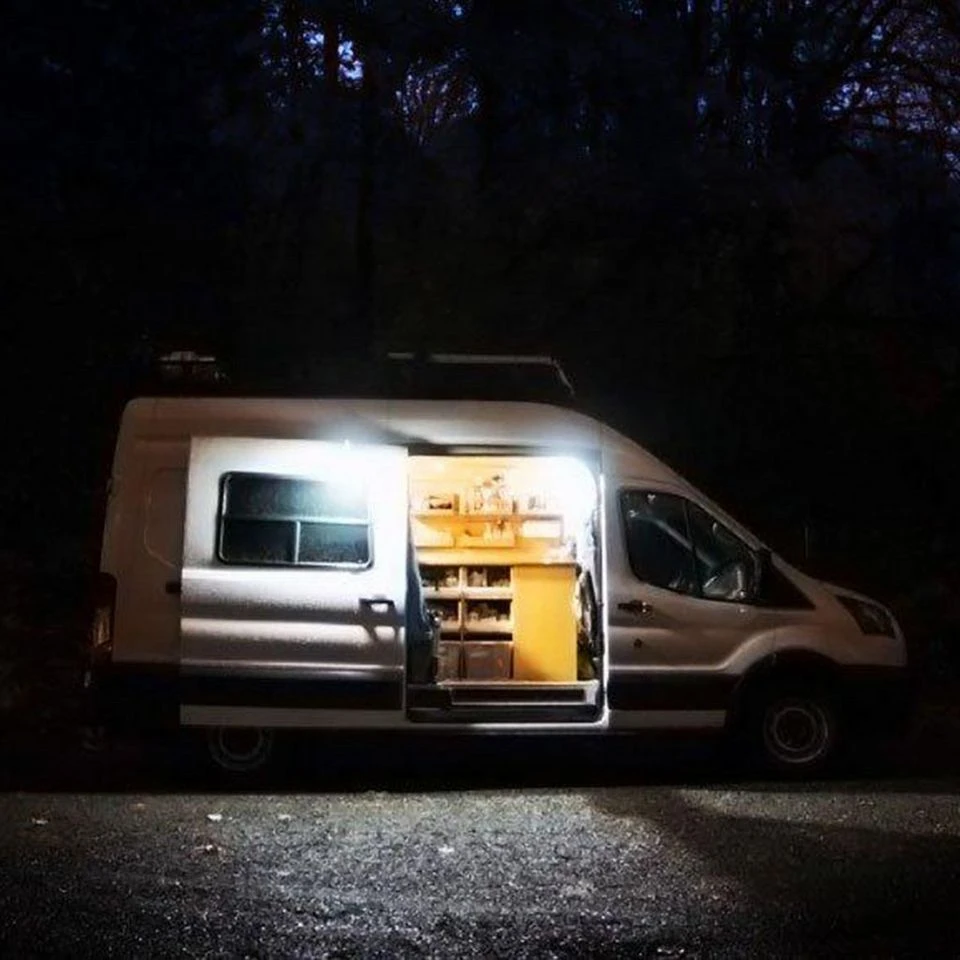

Perfect for camping & caravanning, van life, outbuildings, or even just the next power outage, BioLite’s SolarHome 620 system will light up your life, and so much more.

This easy-to-install system uses a 6 watt solar panel to capture the daily sun, which charges up the central 20 Wh control box, which not only powers 3 hanging lights, but also the battery hub which contains a USB charge-out and an MP3/FM radio.

620 = 6 Watts, 20 Watt Hours
SolarHome’s name comes from the 6-watt solar panel and 20 watt hour battery inside the control box that keeps the whole system running. An Integrated LED display provides real-time feedback on your sun strength and power available.

400 Lumens Across 4 Lights
3 daisy-chaining lights provide multi-area lighting, with the integrated control box illumination serving as an additional wall light. Each light comes with its own light switch for total control.

Motion Sensor Capability

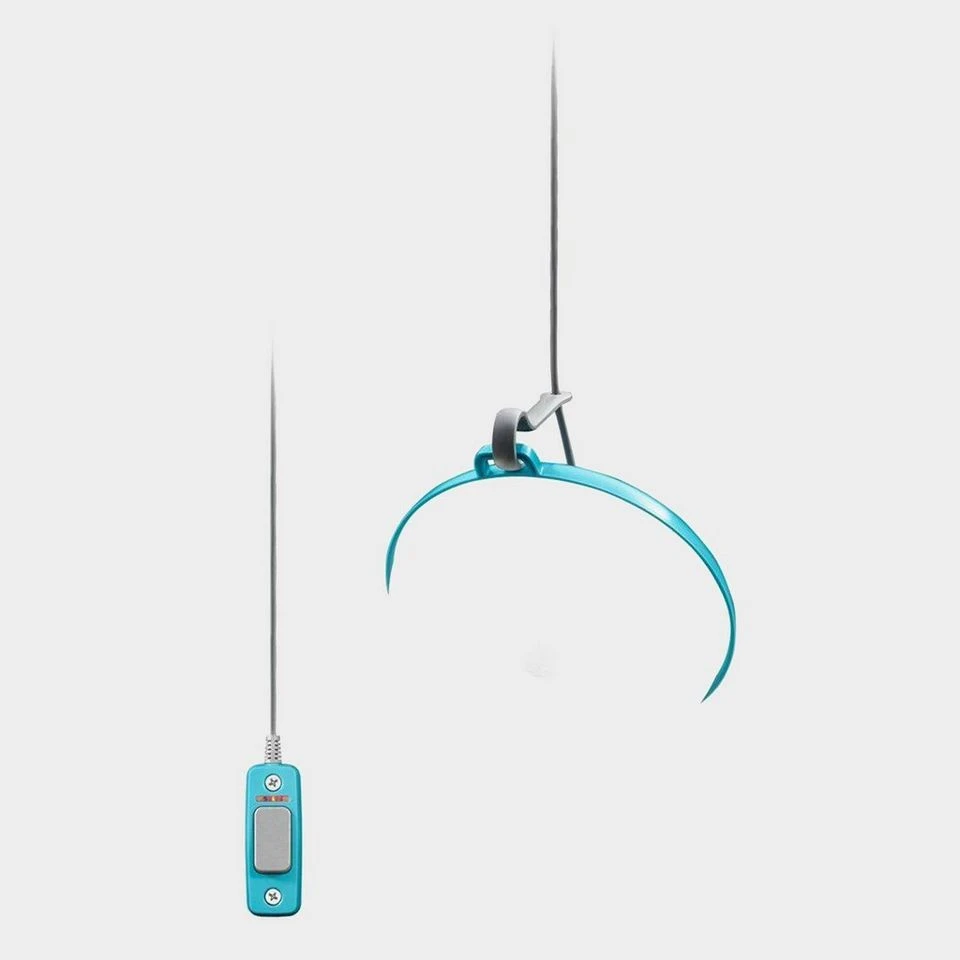

The 3rd hanging light comes with a “seeing eye” design that can activate from nearby motion, great for added security and help you find your door when arriving home.

Field Tested
SolarHome 620 is currently in over 5,000 homes across Western Kenya in use every day. (See ‘The Power of Home’ video below for more details)

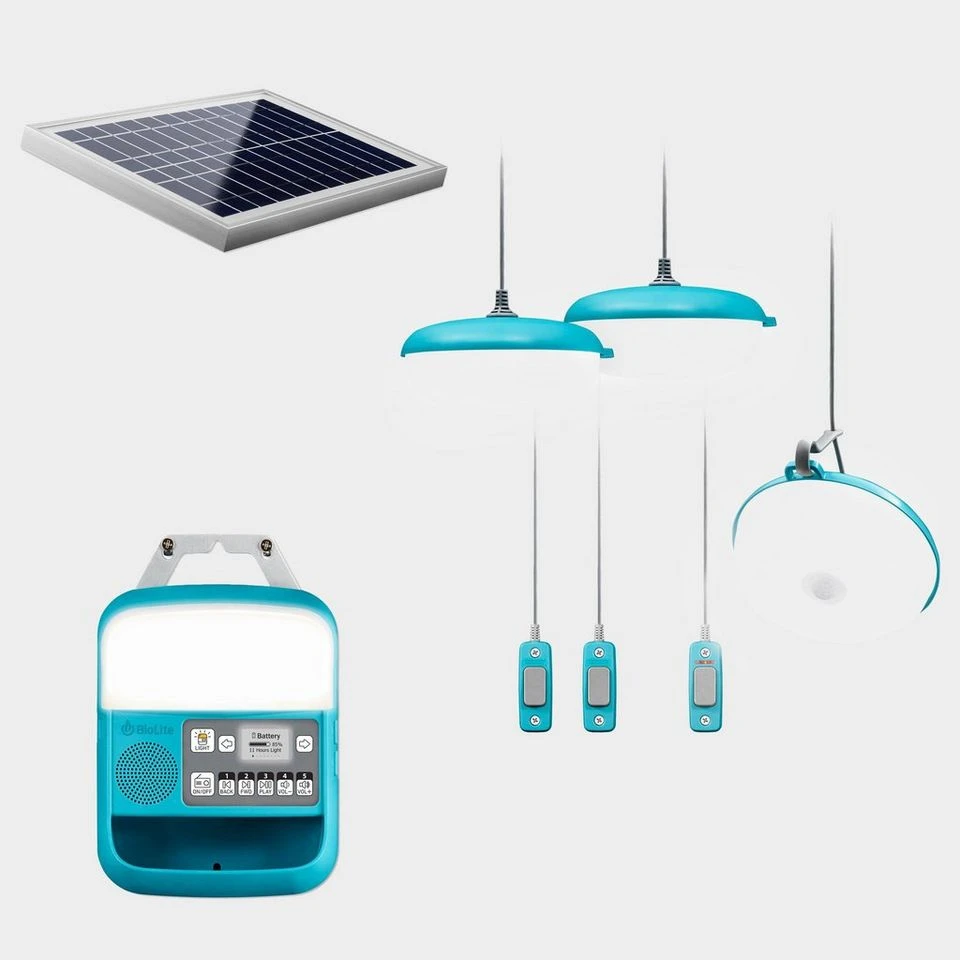

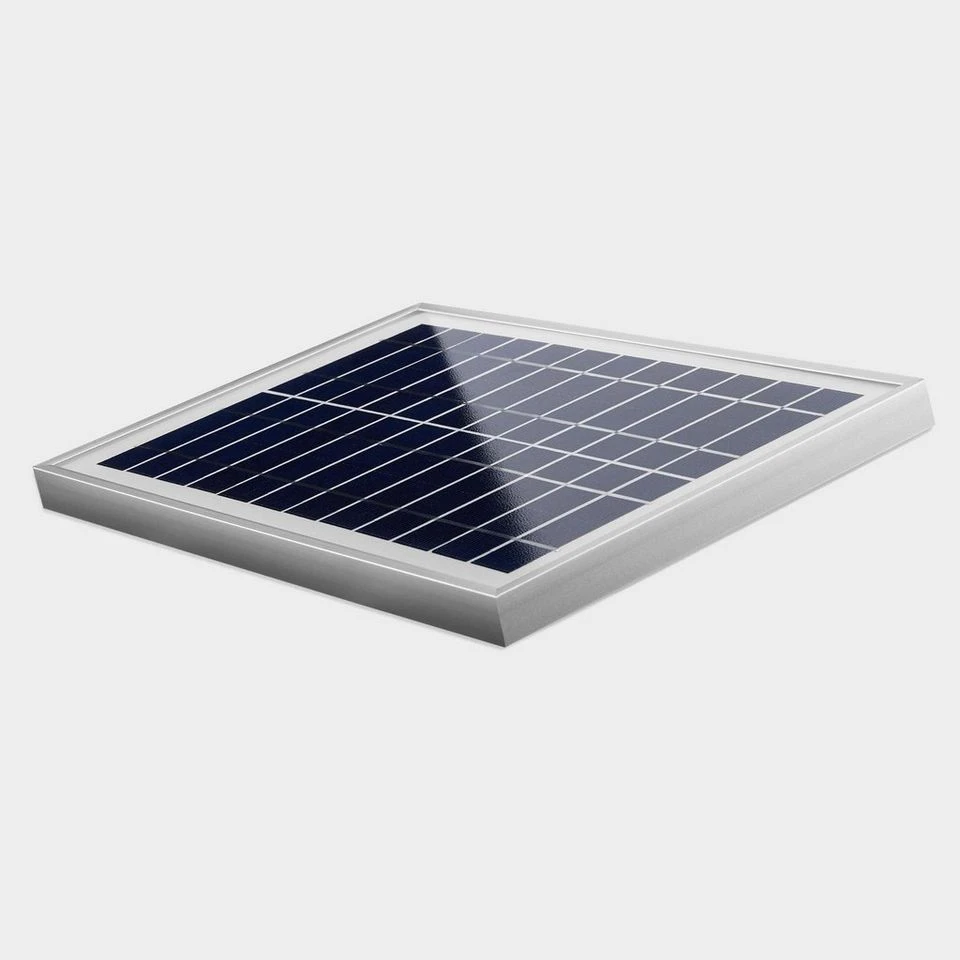

• 6 Watt Solar Panel provides power to your system

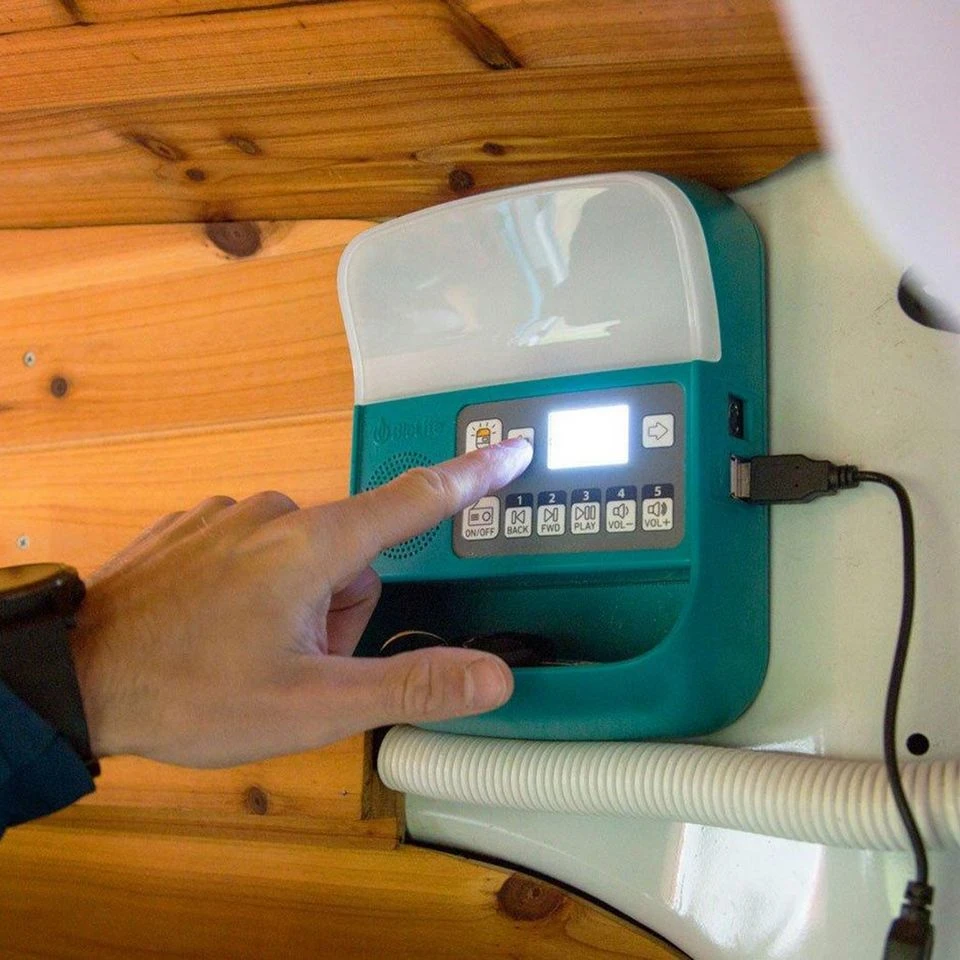

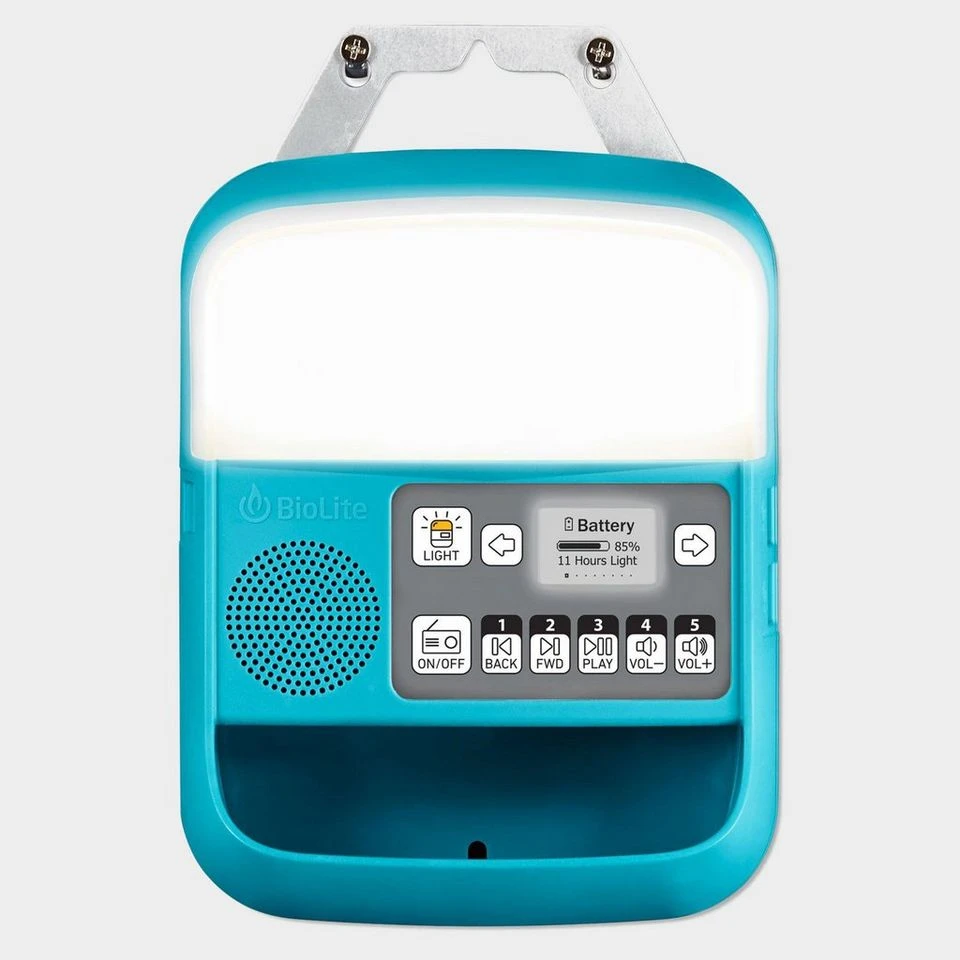

• Wall Mounted Control Box monitors your power, charges devices and plays music

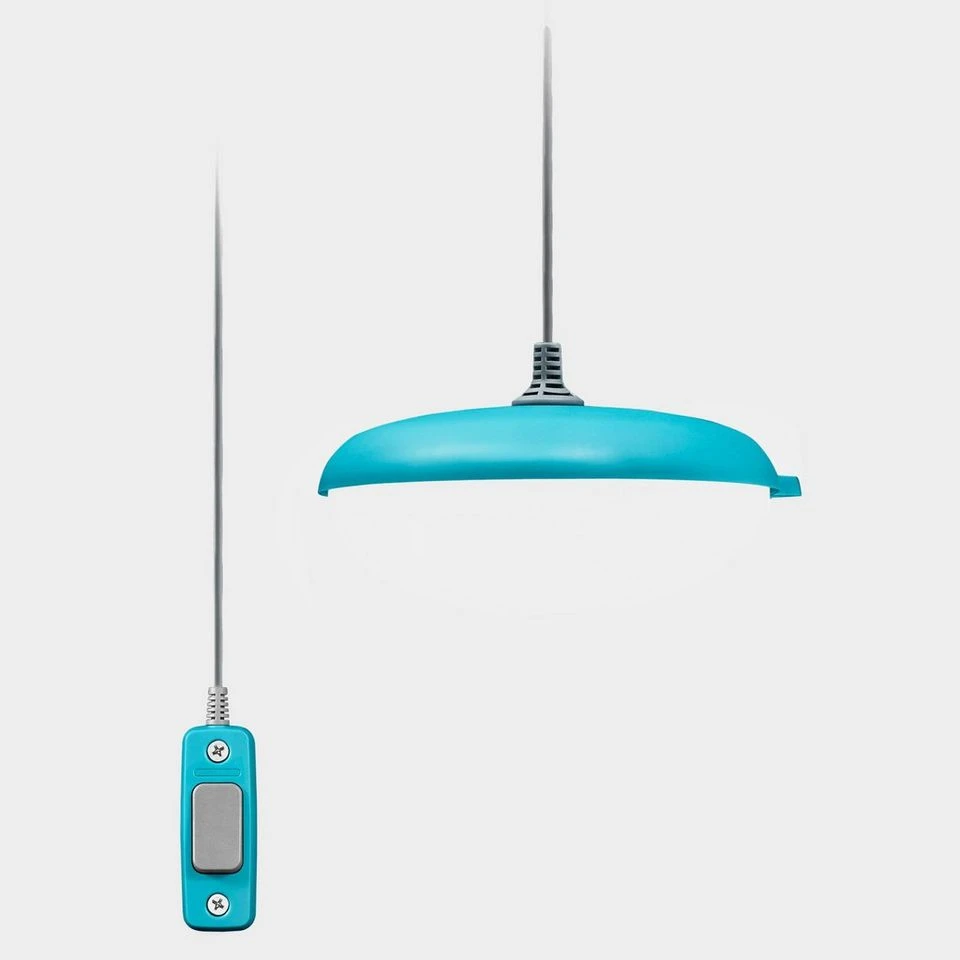

• 2x Hanging Lights use wall mounted switches to adjust to 3 levels of brightness
• 1x Motion Sensor Light security mode saves power and can alert you of passers-by

INPUTS: Solar panel port x1 (PV Module)
DIMENSIONS:
Control Box: 7.9 x 6.1 x 2.9 in (200 x 154 x 68 mm )
Hanging Lights (each): 5.9 x 5.5 x 3.2 in (150 x 140 x 82 mm )
Solar Panel: 11.4 x 7.5 x 0.6 in (290 x 190 x 16 mm )
LUMENS: 100 Lm per light (400 Lm total)
WEIGHT: Control Box 550g (1.21 lbs), Hanging Lights (each) 300g (0.66 lbs), Solar Panel 720g (1.59 lbs)

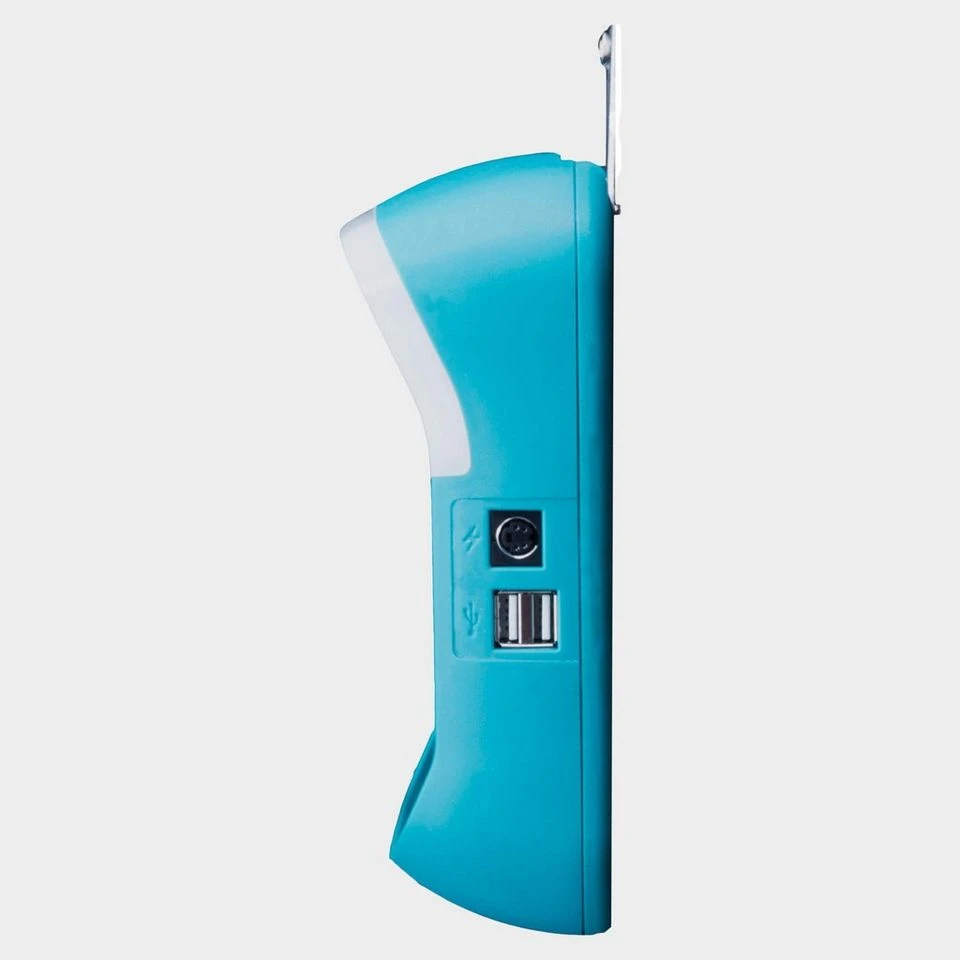

OUTPUTS: USB Charge Out x2 (USB Devices), DIN Port x1 (Expansion Battery), Light Port x2, Light Junctions x3 (Light Extensions)
BATTERY: 3300 mAh @ 6.5V (20 Wh), LiFEPO4
CABLE LENGTH: Lights18 ft (5.5m) All hanging lights are chainable, Solar Panel 21 ft (6.5m)

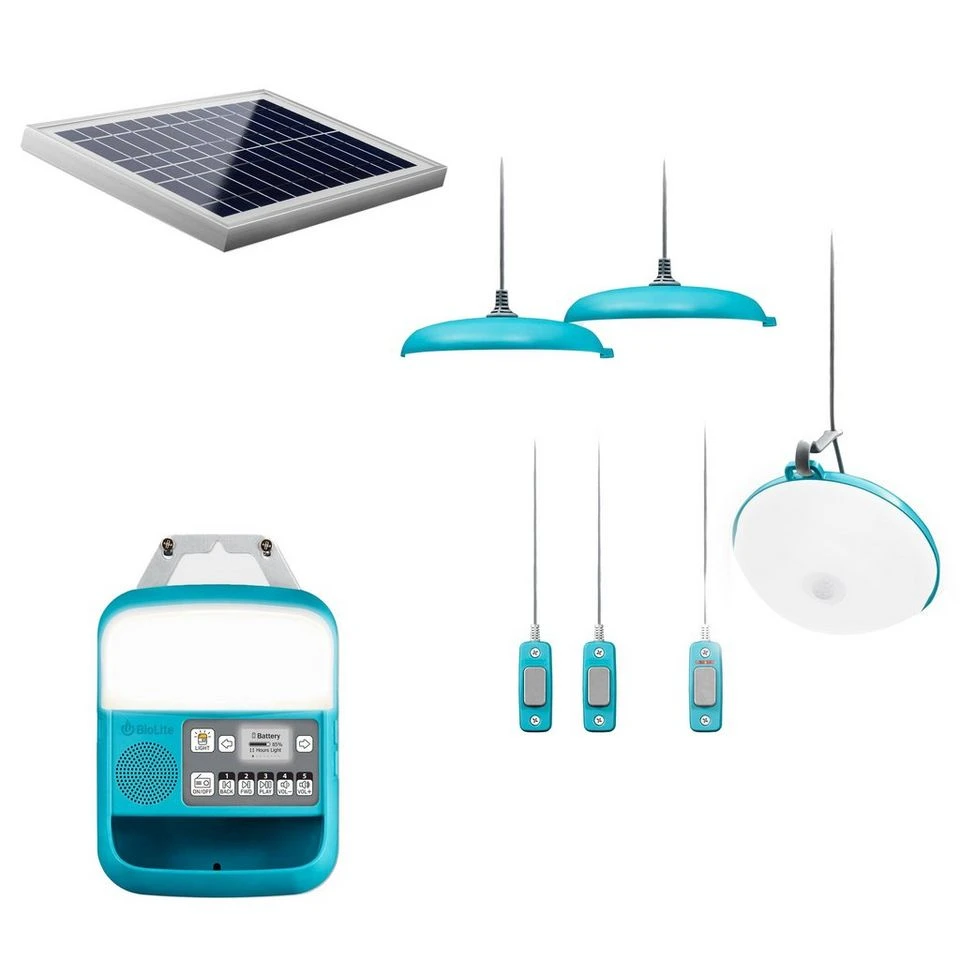

In The Box
Control Box
2 Hanging Lights
1 Security Light
1 Solar Panel
USB Adapter
Wall Screws
