Arezzo Brushed Brass Square Modern Twin Concealed Shower Valve

Arezzo Brushed Brass Square Modern Twin Concealed Shower Valve – 1 Outlet

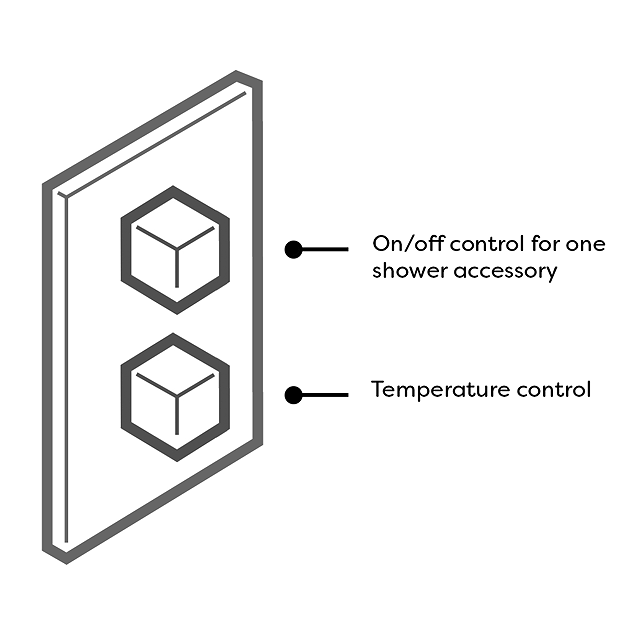

The Arezzo Concealed Thermostatic Shower Valve features a striking square design with a contemporary brushed brass finish. This ‘twin’ shower valve is perfect for installing in a concealed arrangement, linked to a fixed shower head. This concealed valve is best paired with one outlet, i.e. a main shower head. The Arezzo Square Concealed Shower Valve has two easy to use controls, for temperature and flow. The valve body comes with a contemporary rectangular backplate and has been constructed from solid brass.

Product Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Square

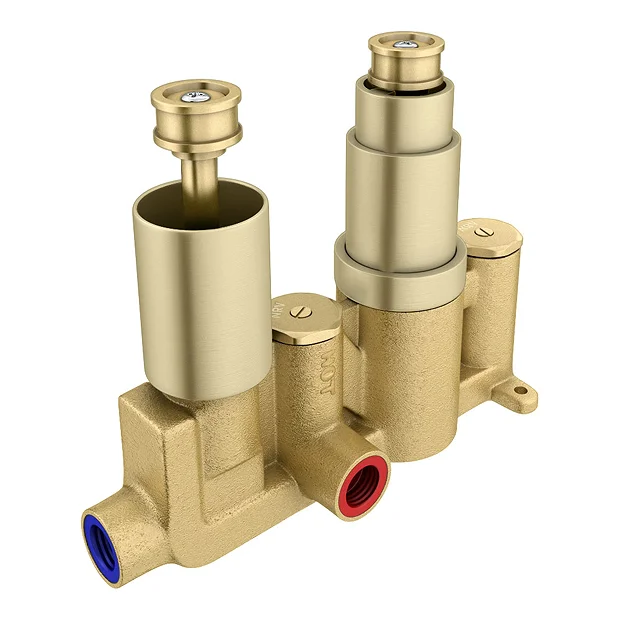

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar

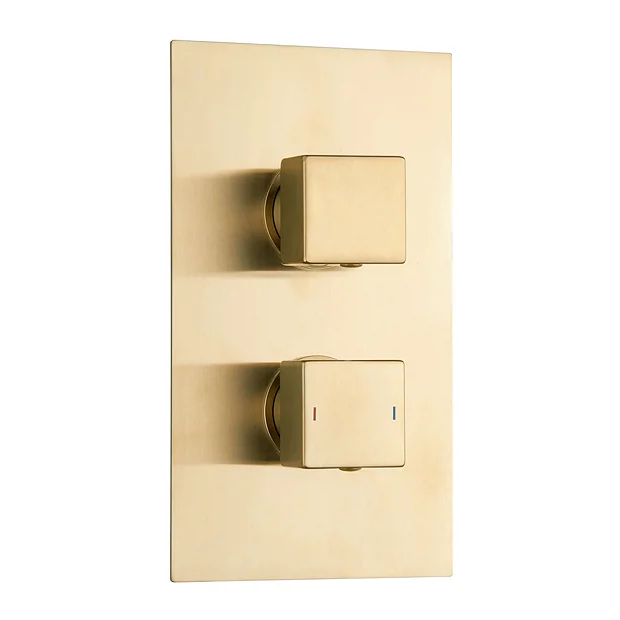

• Rectangular Backplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Shower head sold separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Comprises

(1) Brushed Brass Twin Square Handles Concealed Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
